The Paneloc 785 Series Spring Latch features a 3/8″ pin with a holdback.
These large rugged latches feature a closed knuckle for added durability and strength making them well suited for truck and trailer bodies.
Series 785
PIN
| P | Pin Diameter | .375 |
| E* | Extension | 1.25 |
| R1* | Handle Extension | .690 |
| R2* | Handle Extension | 1.38 |
BODY
| L | Length | 2.00 |
| W | Width | 1.50 |
| T | Material Thickness | .125 |
| H | Height | .500 |
| BH | Body Height | .940 |
| H2 | Hole Location | .440 |
| H3 | Hole Location | 1.125 |
| H4 | Hole Location | 1.00 |
| D* | Hole Diameter | .218 |
MATERIAL
| Readily available in plain steel with a zinc pin, though it can also be purchased in stainless. |
FINISH
| Most commercial finishes are available, including zinc on steel, passivate and electropolishing on stainless steel. |

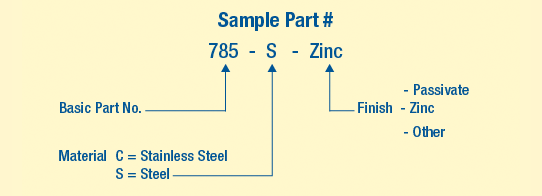

ORDERING INFORMATION
 |
