These rugged slam latches are ideal for applications that require a quick and effortless locking mechanism, such as truck and trailer doors, drawers and tailgates, as well as medical and farm equipment.
To engage simply “slam” the door shut. The spring-loaded pin is square with an angled edge that smoothly retracts as it engages with the keeper and then extends back into place in a locked position. To release, grip the handle and pull back.
Available in 3 sizes: 7/16″, 3/8″ and 1/2″ pins
Standard Version With Cover shown to the left
Special forms, offsets, hole sizes or welding projections are available to your specifications.
*Designates dimensions that can be altered to meet your specifications.
Series 709W
PIN
| P | Pin Size | .500 |
| *E | Extension | .750 |
| R1 | Handle Length | 1.25 |
| R3 | Handle Extension | 1.38 |
BODY
| L | Length | 2.875 |
| *W | Width | 2.66 |
| T1 | Thickness | .190 |
| T2 | Thickness | .187 |
| *H1 | Hole Location | .300 |
| *H2 | Hole Location | .470 |
| H3 | Hole Location | 1.937 |
| H4 | Hole Location | 1.060 |
| D* | Hole Diameter | .265 |
MATERIAL
| C = Stainless |
| S = Steel |
FINISH
| Most commercial finishes are available, including zinc on steel, passivate and electropolishing on stainless steel. |

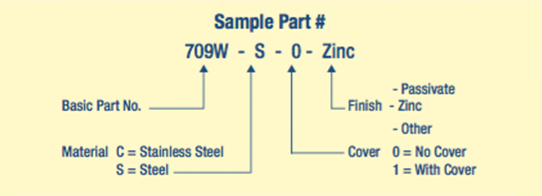

ORDERING INFORMATION
 |
